nové možnosti pri tvorbe náčrtu

Linear and arched slots

You can sketch linear or arched slots with a single command, similarly as other basic shapes like rectangles or circles.

Five new Slot commands are available:

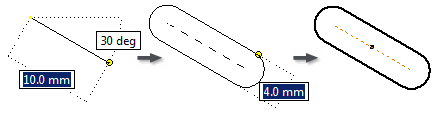

  • Center to Center Slot command creates a linear slot defined by orientation and length of the slot centerline, and by slot width.

AI2014_SKETCH_001

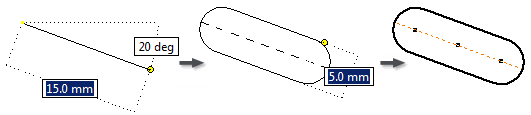

  • Overall Slot command creates a linear slot defined by slot orientation, length, and width.

AI2014_SKETCH_002

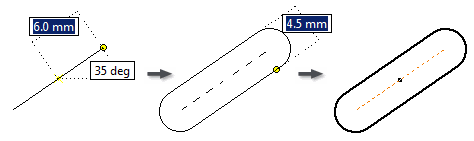

  • Center Point Slot command creates a linear slot defined by the slot center, orientation and length of the slot centerline, and by slot width.

AI2014_SKETCH_003

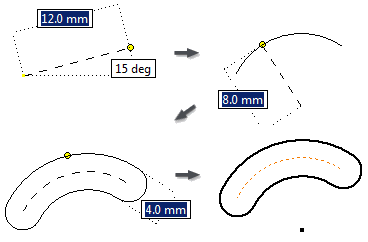

  • Three Point Arc Slot command creates an arc slot defined by a three-point center arc, and by slot width.

AI2014_SKETCH_004

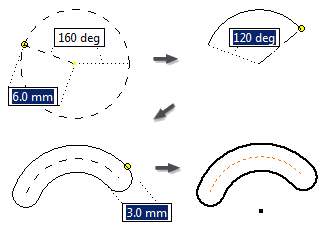

  • Center Point Arc Slot command creates an arc slot defined by a center point, two-point center arc, and by slot width.

AI2014_SKETCH_005
